ACT® - Releasing the Power of Ultrasound for Targeted Drug Delivery
Why targeted drug delivery?
The clinical utility of a wide range of drugs, especially within oncology, is strongly curbed by dose limiting toxicities. Dosed systemically, the entire body is treated and typically, less than 0.01% of the injected dose reaches the targeted pathology (e.g. tumour). As a rule, these therapeutic regimes are not terminated because the patient is cured, but because of excessive systemic toxicity.

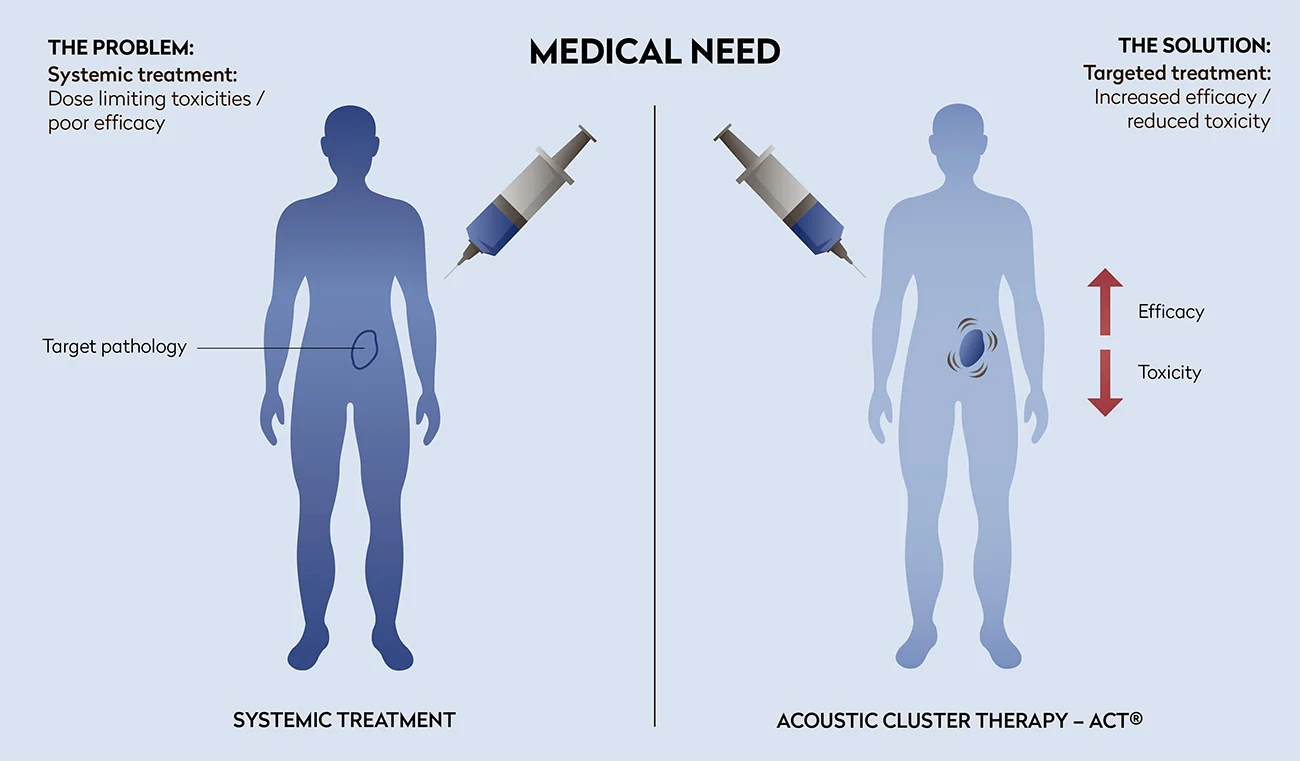

Over the last few decades, the pharmaceutical industry has spent vast resources in trying to overcome this dilemma with various approaches for targeted drug delivery. By enhancing delivery of drug specifically to the pathology in question the systemic exposure can be reduced (reducing toxicity), and the efficacy is increased (cf. Figure 1).
What is Acoustic Cluster Therapy (ACT®)?
The conceptual idea behind the ACT® approach is localized enhancement of extravasation, distribution and uptake of drugs (e.g. chemotherapeutic), systemically co-administered together with the ACT® formulation. It is a platform technology capable of enhancing significantly the clinical utility of a wide range of therapeutic molecules and nano-drugs for a wide range of clinical indications.
The ACT® product is formed by reconstitution of commercially available, negatively charged microbubbles (Sonazoid™) with an emulsion of positively charged microdroplets of an inert, perfluorated oil. The active moiety comprises free flowing, microbubble/microdroplet clusters formed from the electrostatic attraction, engineered to phase shift (vaporize) in-vivo in a controlled manner (cf. Figure 2).
The clinical procedure is simple. In addition to a small i.v. injection of ACT®, the drug is administered in a regular manner (e.g. infusion of chemotherapeutic agent). When the μ-bubble/μ-droplet clusters are exposed to standard medical imaging US at the targeted pathology, the microbubbles transfer acoustic energy to the attached droplets, which undergo a liquid-to-gas phase shift (cf. Figure 3). The resulting vapour bubble instantly expand to ~ 20 μm and transiently (~ 5 minutes) deposit in the targeted capillary network. Further application of US oscillates these large bubbles and induces well-established, non-thermal mechanisms including stable oscillation, localized microstreaming, and radiation and shear forces that increase the local permeability of the vasculature, increasing transport of the co-administered drug across the capillary barrier and through the extracellular matrix. It should be noted that all constituents in the ACT® formulation are chemically and biologically inert; there`s no active biochemistry and no metabolism involved - the approach rests fully on physical and biomechanical effects. For further details on basic concept, formulation and attributes, see , , and .
Proof of concept / areas of deployment
In a series of pre-clinical studies, ACT® has been shown to strongly increase the therapeutic efficacy of a wide range of drug molecules (e.g. Abraxane®, paclitaxel, Doxil™ and gemcitabine) for a range of oncology indications (pancreatic, prostate and breast cancers) , , , and . Kaplan-Meier plots from two of these studies are shown in Figure 4.
ACT® has also been show to increase tumour specific uptake of co-administered model molecules as much as 2-300%  (cf. Figure 5).
Whereas Phoenix so far has focused on the oncology segment, ACT® has also been explored for potential medicinal treatment of CNS disorders (e.g. cancers and TBI). The vasculature of the brain is extremely tight (the “Blood-Brain Barrier) and effectively precludes medicinal treatment with molecules larger than approx. 500 Da, disbarring most modern therapeutics. Hence, employing ACT® to induce a controlled, transient opening of the BBB, this would open for an entirely new approach for medicinal treatment of CNS disorders. In two studies, ACT® has been shown to allow for controlled opening of the BBB and delivery of both small and macromolecules to brain tissue  (cf. Figure 6).
ACT® is well tolerated; in the studies referred above, no treatment related weight changes and no distress or Adverse Events were observed during or immediately after treatment. ACT® has also been explored in a series of dedicated safety studies with no clinically relevant observations .
